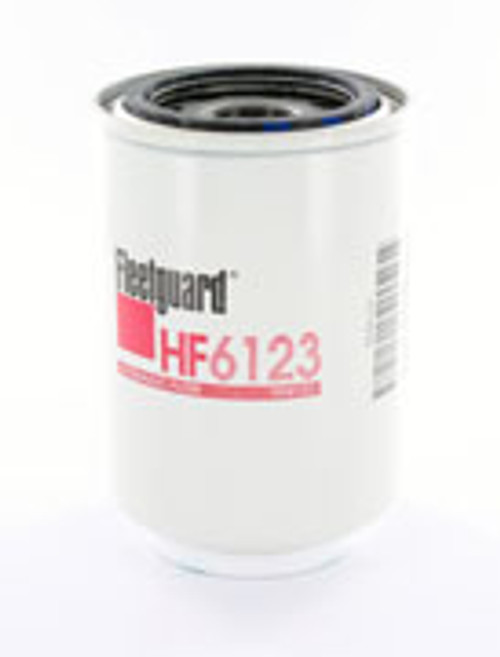

Product Description
Overall Height: 136.14 mm (5.36 in)
Largest OD: 93.22 mm (3.67 in)
Seam OD: 93.62 mm (3.686 in)
Gasket OD: 71.98 mm (2.834 in)
GASKET INSIDE DIAMETER: 62.74 mm (2.47 in)
Thread Size: 1 1/8-16 UN-2B
Standpipe: NO
ADBV: null
BPV Setting: 55 kPa (7.98 PSI)
TWA MICRON @ BETA=2: 26 micron (26 micron)
TWA MICRON @ BETA=20: 41 micron (41 micron)
TWA MICRON @ BETA=200: 0 micron (0 micron)
TWA MICRON @ BETA=75: 60 micron (60 micron)
Primary Applications:
FORD: D8NNB486EA
Nothing Guards Like Fleetguard®.
As a filtration company that manufactures its own media, Cummins Filtration knows the science from the inside out. With a full line of filters specifically engineered for a wide range of systems, your customers get advanced design and high quality performance, providing the ultimate protection for all of their equipment.
- Meets OEM specifications - Fleetguard engineers all products to meet or exceed OEM specifications to ensure engines and other systems get maximum life.
- Backed by the best warranty in the business - With the most inclusive and comprehensive warranty in the industry, customers can have total confidence in their purchase.
- Filters for every fleet - Fleetguard has over 8,300 products covering the widest range of air, lube, fuel and hydraulic filters in the heavy duty industry.
- Systems approach - We don't just provide parts. We are a comprehensive supplier to support the maintenance of your equipment.
